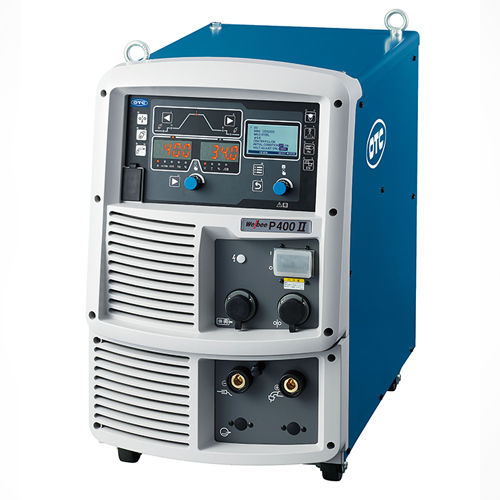

WELBEE P400 II
WELBEE P400 II
WELBEE INVERTER P400
Digital inverter controlled pulse
MAG / MIG / CO2 / MAG / MIG automatic welding machine
Welding of iron, stainless steel and aluminum is possible
The latest model!
Characteristic
● Simple and easy-to-understand operation panel with LCD
A wealth of information can be displayed, and details of function errors can be confirmed without an instruction manual.
Equipped with a "welding guide" function that assists in setting welding conditions
● Smart pulse -Pulse automatic adjustment function-
Achieves stable welding with less spatter by automatically optimizing the pulse waveform even with a short arc length during high-speed welding
● Achieves high-quality pulse welding by waveform control optimized for each material
● Excellent arc stability even in high-speed welding
Specifications
Welding power supply | WB-P400 |
Rated input | 3Phase 380/400V |
Rated output | 400A/36V |
Output adjustment range | 30～400A/12～36V |
Rated usage rate | 60％(100% 270A) |
Mass (dimension) | 52kg（395×710×640mm） |
Wire feeder | CM-7403、CMA-7403、CMAW-7403 |
Welding Torch | BT3510-30、BTA300-30、BTAW400-30 |
Gas Flow Regulator | D-BHN-2、FCR-226 |
