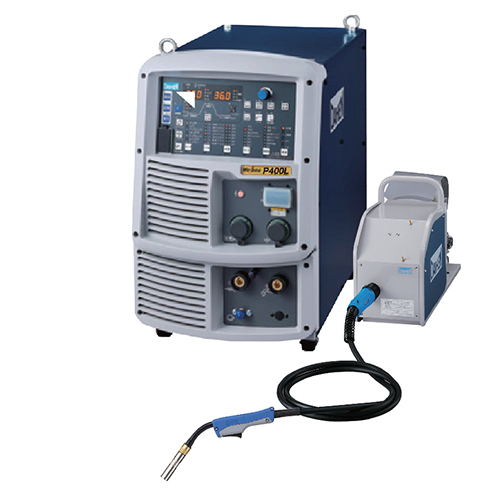

WELBEE P400L
• Use different welding modes for different welding occasions to obtain welding with small spatter and excellent quality.
• P400L contains a variety of main welding materials, which can meet the welding needs of the diversified materials and diversified joint forms of the factory.
• P400L It has a variety of welding modes, the CST-EX mode is used for the occasions that require low heat input, and the DC pulse mode is used for the occasions that require deep penetration.
• P400L is suitable for carbon steel, stainless steel, aluminum and other materials, from thin plates to medium-thick plates, and can exert excellent welding performance in a variety of welding situations.
SPECIFICATIONS
Comprehensive name | Welbee Inverter P400L | |||
Welding power | form | WB-P400L | ||
Rated input voltage | V | 380V soil 10% (50/60Hz) | ||
Phase | Three phase | |||
Rated input power | kVA | 18.8kVA (17.1 kW) | ||
Rated power | % | DC: 60 Pulse: 50 | ||
Rated output current | A | 400 | ||
Rated load voltage | V | 34 | ||
Output current range | A | 30-400 | ||
Output voltage range | V | 12-34 | ||
Maximum no-load voltage | V | 75 | ||
Protection level | IP23 | |||
Dimensions (WxDxH) | mm | 395x710x640 (excluding eye bolts) | ||
weight | kg | 60 | ||
Wire feeding side cable | form | BKPDT-6002 | ||
Cable cross-sectional area | mm² | 60 | ||
Base material side cable | form | BKPDT-6002 | ||
Cable cross-sectional area | mm² | 60 | ||
Wire feeder | form | CM•7402 | CMV•7402 | CMV•7402 |
Applicable welding wire diameter | mm | 0.8, 0.9, 1.0, 1.2, 1.4, 1.6 | 0.8, 0.9, 1.0, 1.2, 1.4, 1.6 | 1.0, 1.2, 1.6 |
Use welding wire | Solid cored wire; flux cored wire | Solid cored wire; flux cored wire | Hard aluminum; soft aluminum | |
Wire feeding speed | m/min | 22 (maximum) | ||
Dimensions (WxDxH) | mm | 207x588x372 | 207x588x372 | 248x766x429 |
weight | kg | 14 | 13 | 15 |
Welding gun | form | BT3510 • 30 | BTV3510 • 30 | BTA300 • 30 |
Rated current | A | 350 | 350 | 300 |
Applicable welding wire diameter | mm | 09, 1.0, 1.2, 1.4 | 09, 1.0, 1.2, 1.4 | 1.0, 1.2, 1.4 |
Usage rate | % | 60 | 60 | 50 |
cooling method | Air cooling | Air cooling | Air cooling | |
cable length | m | 3, 4.5, 6 | 3, 4.5, 6 | 3 |
Flowmeter | CO2: HLCO2 *9 | |||
MAG/MIG:HLAR19-50L | ||||
