WELBEE P400L
WELBEE P500L

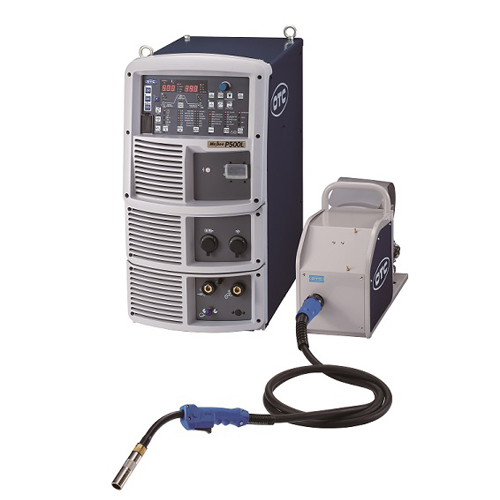

Welbee Inverter P500L
Digital Inverter Controlled Pulse
MAG / MIG · CO 2 / MAG / MIG automatic welding machine
The top model that demonstrates the best welding performance in iron, stainless steel, aluminum welding!
Characteristic
Digital Inverter Controlled Pulse MAG / MIG · CO 2 / MAG / MIG Automatic Welding Machine
• Significant reduction in spatter generation from low current to high current
● High-quality pulse welding realized by waveform control optimized for various materials
SPECIFICATIONS
Welding power supply | WB-P500L |
Rated input | 3Phase 380/400V |
Rated output | 500（Direct current）/400（pulse） |
Output adjustment range | 30～500（Direct current）/30～400（pulse） |
Rated usage rate | 60%(Direct current)/80%（pulse） |
Mass (dimension) | 72kg（395×710×810mm） |
Wire feeder | CM-7402、CMV-7402、CMW-742、CMA-7402、CMAW-742 |
Welding Torch | BT5000-30、BT3510V-30、WTCW-5001、BTA300-30、WTCAW-5002 |
Gas Flow Regulator | D-BHN-2、FCR-226 |
