XD-350SII / XD-500SII

XD-350SII / XD-500SII

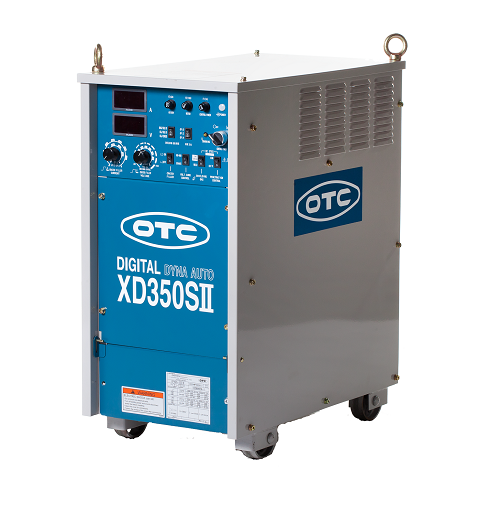

Dyna Auto XD 350 II · 500 II

Microcomputer thyristor control type
CO2 / MAG automatic welding machine
Excellent workability & boasts robustness
Ultimate new basic model



Characteristic

Microcomputer · thyristor controlled type CO 2 / MAG automatic welding machine

XD350 II
    ● Improved startability with high performance microcomputer
    ● Improved workability by unifying control cables
    ● Improved durability and robustness
    Simple drip-proof seat on the front as standard, protecting panel parts from sudden rain during dust and outdoor storage!
    ● Consideration for the environment "Power saving circuit" "Fan stop function" "Gas saving function"

XD 500 I II
    - New high performance microcomputer is installed, the welding mode expansion and startability improvement are realized by the processing speed and the memory capacity up as much as the digital inverter welding machine!
    ● Resistant to input voltage / frequency fluctuations, always ensuring stable welding quality!
    By installing "Brake Unit" sold separately on the feeder, it is possible to suppress the feed of wire at the end of the welding as much as possible! Effective for tack welding at extension!
    ● Improved robustness and maintenance system, such as standard equipped with a simple drip-proof sheet that protects panel operation parts!




Specification

Welding power supply

CPXD-350

CPXD-500

Rated input

3Phase 380/400V

3Phase 380/400V

Rated output

350A/36V

500A/45V

Output adjustment range

50350A/1536V

50500A/1545V

Rated usage rate

50%

60%

Mass (dimension)

103kg(372×690×659mm)

164kg(454×701×859mm)

Wire feeder

CM-2302

CM-2302

Welding Torch

BT3500-30BT3510-30

BT5000-30

Gas Flow Regulator

CO2NP-201MAGD-BHN-2

FCR-226With heater
