Tube End Beveling Machine

End Prep Pipe Bevelers

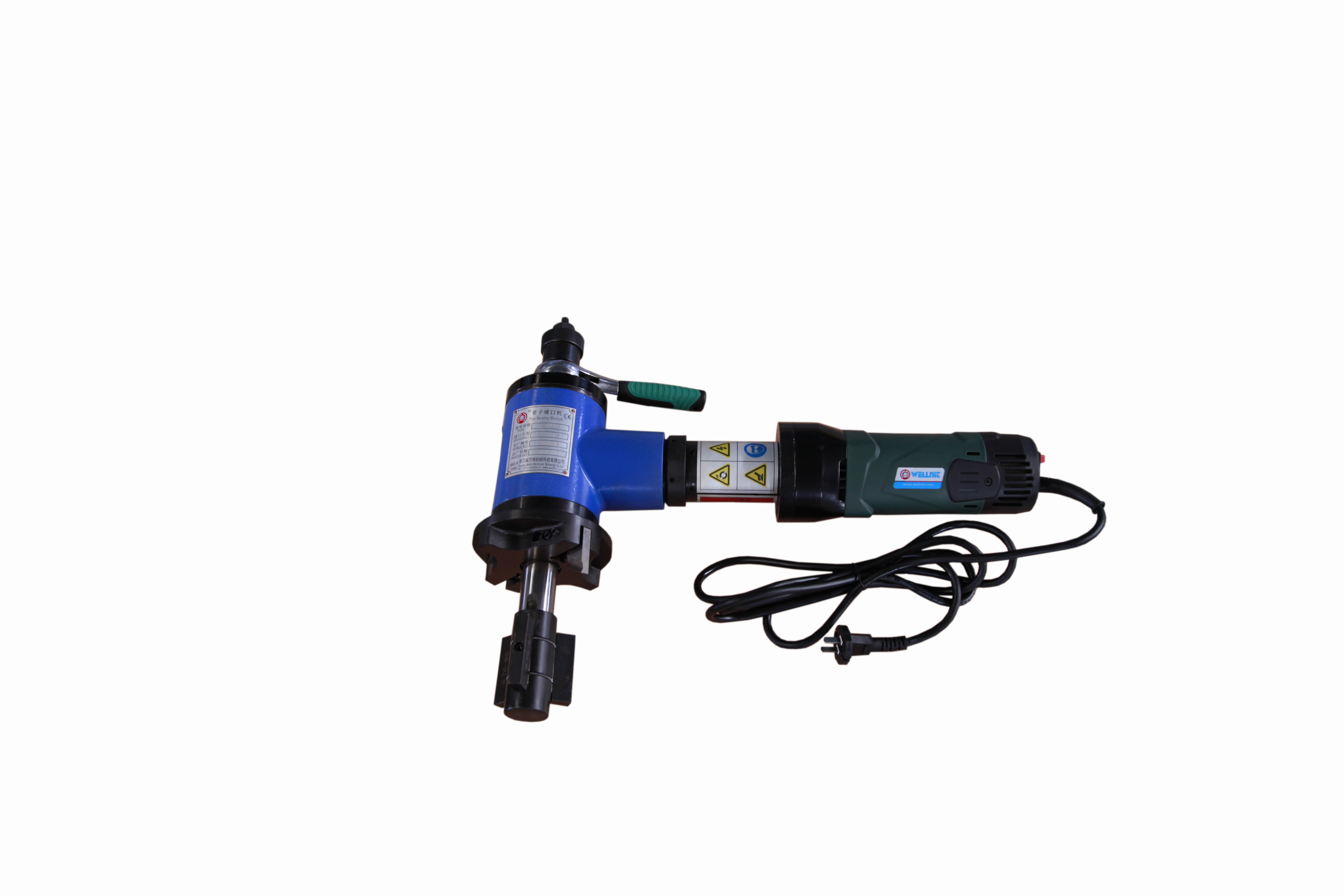

The Auto working Prep auto feed system is a precision I.D. mount end prep machine tool designed to bevel, compound bevel, J prep, face and counter bore pipe(II type machine), fittings and valves. This machine is a lightweight but powerful pipe beveller. Most popularly used in power station and petrochemical shut-down scenarios where reduced size, easy handling and quick set up is required. Manufactured with a slim 60mm body and cutter head, is perfect for operations in restricted access areas.Utilizing our revolutionary Speed Prep mechanism that feeds simultaneously in the axial and radial planes, it can machine any bevel or compound bevel without templates, incline tool slides or work stoppages.Cutting, facing, bevelling and counter boring preparations are possible on all machinable alloys including stainless steel, duplex, super duplex, inconel and other alloys.

Seal and strength weld removal applications for heat exchangers and boilers are the primary focus of our machining technology. With the Auto working Prep system, it's now possible to set the bevel angle and land that works best for your application, all without work stoppages or additional stoppages. Powerful enough to form tool from 2/3 inch - 34 inch (DN18-850) , it can process pipe wall thickness from 2mm - 75mm .

Features:

Available without Auto Prep for form tooling and facing operations

Fully modular construction for fast, easy one man set up and operation

Low friction bearing system provides maximum stability and eliminates chatter

It eliminates the need for accessory templates or external tool slides

Manual feed handle pulls out to engage Auto Prep auto feed system



Product name: internal expanding type electric pipe groove machine

Product model:ISE

Processing caliber:φ18-φ850 1/2”-34”

Groove wall thickness:≤15-≤75

The knife dish speed:60r/min-9r/min

Product material: chrome molybdenum steel, low temperature steel, titanium alloy steel, etc.

Product standards:GB/T 156;GB 1002;GB 2099.1;GB/T 5013.4;GB/T 5023.5;GB 5226.1;GB/T 11918;GB/T 13277.1;GB 16710


ISE Internal expanding type electric pipe facing machine groove parameters:


ModelWorkingRange(LD-OD)WallthicknessRotationSpeed
ISE-30Ø18-301/2”-3/4”≤1550r/min
ISE-80Ø28-891”-3”≤1555r/min
ISE-120Ø40-12011/4”-4”≤1530r/min
ISE-159Ø65-15921/2”-5”≤2035r/min
ISE-252-1Ø80-2733”-10”≤2016r/min
ISE-252-2Ø80-273≤7516r/min
ISE-352-1Ø150-3566”-14”≤2014r/min
ISE-352-2Ø150-356≤7514r/min
ISE-426-1Ø273-42610”-16”≤2012r/min
ISE-426-2Ø273-426≤7512r/min
ISE-630-1Ø300-63012”-24”≤2010r/min
ISE-630-2Ø300-630≤7510r/min
ISE-850-1Ø490-85024”-34”≤209r/min
ISE-850-2Ø490-850≤759r/min



ISE Internal expanding type electric pipe facing machine standard configuration:

1、Calibration clamping system,

2、Customized storage box,

3、Operating tools,

4、Product specification,

5、Qualified inspection report。
