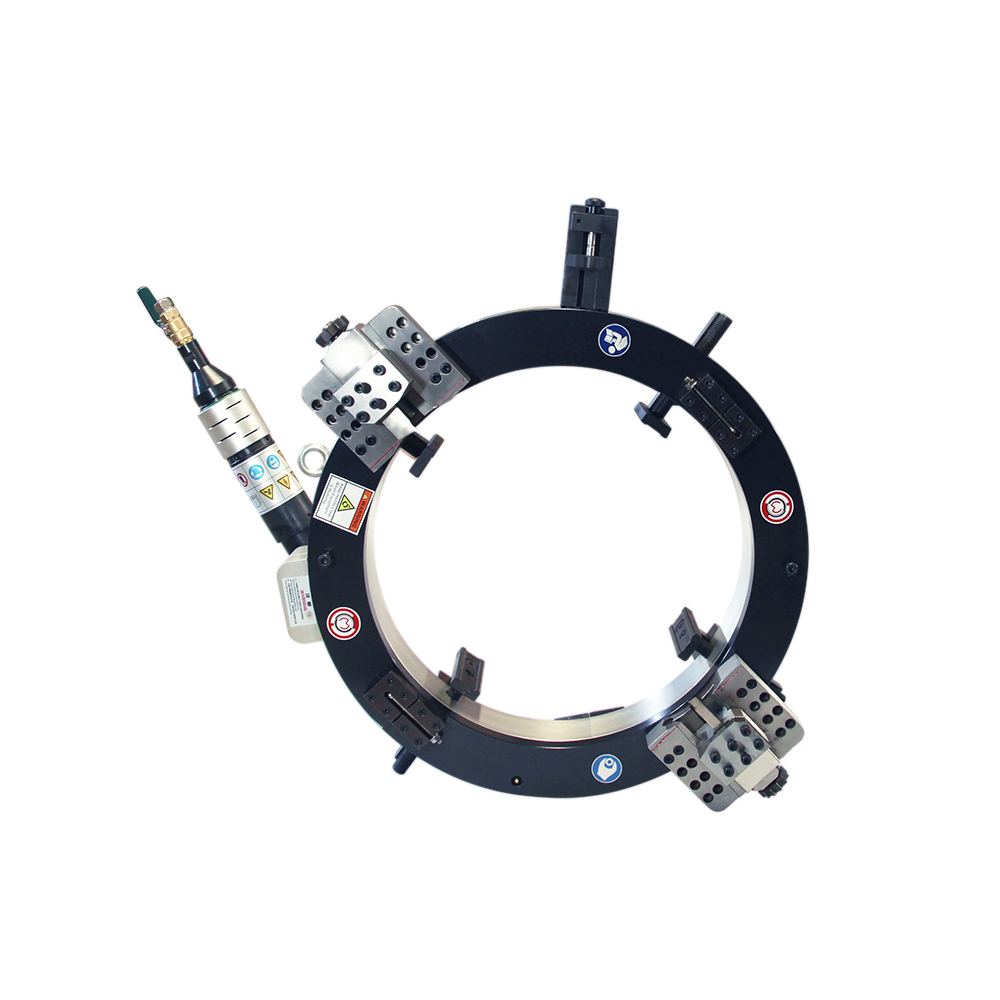

PIPE CUT & BEVEL MACHINE

2021010855417101

The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.

Our OD mounted split frame cold cutting and beveliHeavy duty tool post for thick pipe over 50mmng machine have three operation types :

Pneumatic  Operation Type( OCP series)

Power supply:0.8-1.0Mpa@1000-2000L/min



Electric Operation Type( OCE series)

Power supply: 220-240V 1PH 50-60HZ

Motor Power: 1.5-2KW



3.Hydraulic Operation Type(OCH series)

Power supply:380V 3PH 50-60HZ

10Mpa@25L/min

(Non-standard voltage can be customized)



Working Range:  3/4”-48” (DN25-DN1230 )

Wall Thickness:≤30mm

With heavy duty tool post ,pipe process thickness up to 110mm by using heavy duty tool bits

Rotation Speed:42r/min-11r/min

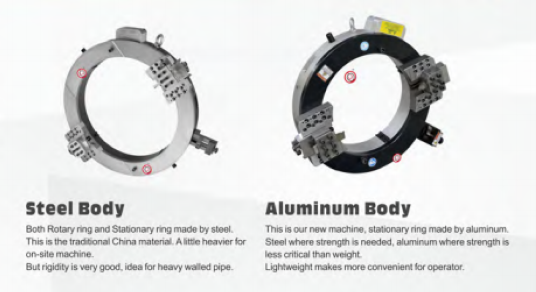

Machine material: Carbon steel body

Aluminum body





Machine main features:

Cold Cutting and Beveling improves safety

Cutting and Beveling simultaneous

Split Frame: easy mounted on pipeline

Tools feed automatically

Fast, Precision, On-site Beveling

Minimal Axial and Radial clearance

Light weight and compact design

Easy set-up & Operation

specifications ModelProcessing range(ID-OD)Working Range(ID-OD)Cutting groove wall thickness Wall thicknesspThe knife dish speed Rotation Speed
OCE-89Ø25-893/4”-3”≤3542r/min
OCE-159Ø50-1592”-5”≤3520r/min
OCE-168Ø50-1682”-6”≤3518r/min
OCE-230Ø80-2303”-8”≤3515r/min
OCE-275Ø125-2755”-10”≤3514r/min
OCE-305Ø150-3056”-10”≤3513r/min
OCE-325Ø168-3256”-12”≤3513r/min
OCE-377Ø219-3778”-14”≤3512r/min
OCE-426Ø273-42610”-16”≤3512r/min
OCE-457Ø300-45712”-18”≤3512r/min
OCE-508Ø355-50814”-20”≤3512r/min
OCE-560Ø400-56016”-22”≤3512r/min
OCE-610Ø457-61018”-24”≤3511r/min
OCE-630Ø480-63020”-24”≤3511r/min
OCE-660Ø508-66020”-26”≤3511r/min
OCE-715Ø560-71522”-28”≤3511r/min
OCE-762Ø600-76224”-30”≤3511r/min
OCE-830Ø660-81326”-32”≤3510r/min
OCE-914Ø762-91430”-36”≤3510r/min
OCE-1066Ø914-106636”-42”≤3510r/min
OCE-1230Ø1066-123042”-48”≤3510r/min

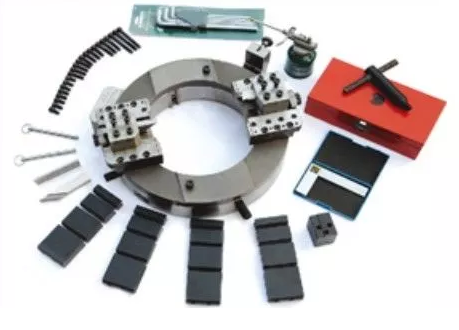

OCE Outer clamp type electric pipe cutting groove machine standard configuration

1、Calibration clamping system,

2、Customized storage box,

3、Operating tools,

4、Product specification,

5、Qualified inspection report.

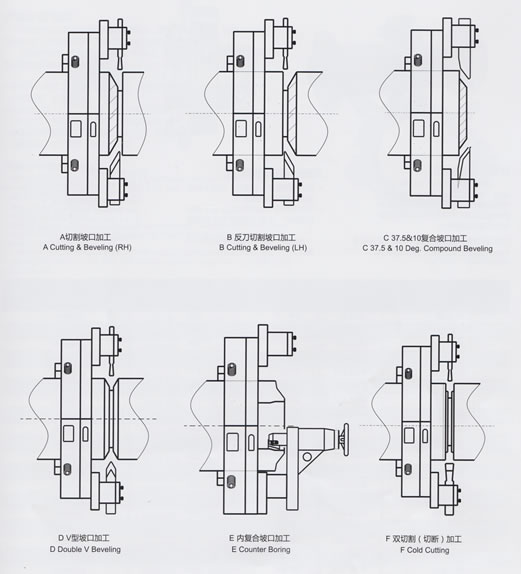

Processing schematic drawing

2015101255423493

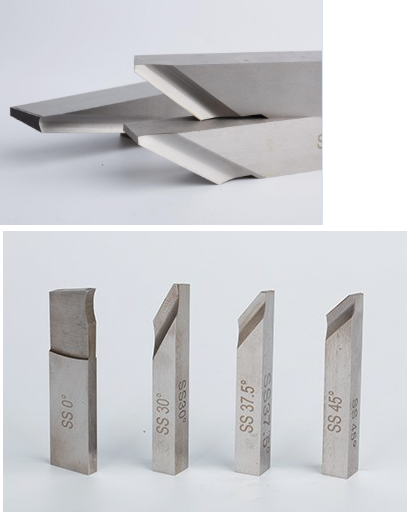

Tool bits types:

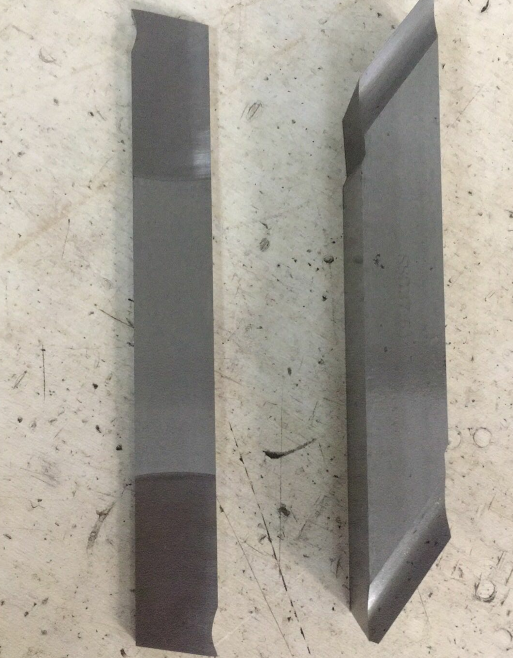

Standard tools:

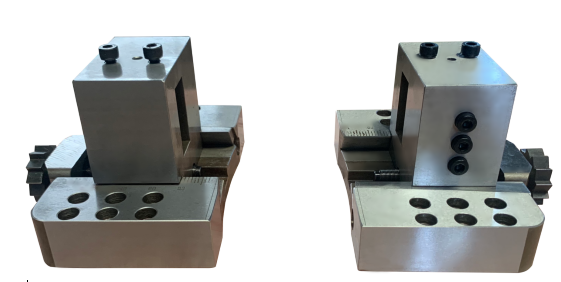

Tool post types:

2021010855598753

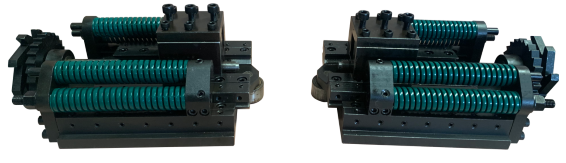

Spring type for Irregular circles, such as ellipses

2021010855613193


Heavy duty tool post for thick pipe over 50mm

2021010855628881

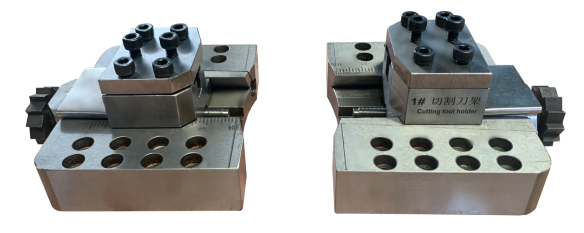

Standard tool post for pipe thickness up to 50mm

Spare parts:

2021010855643717
