Manual Plate Chamfer

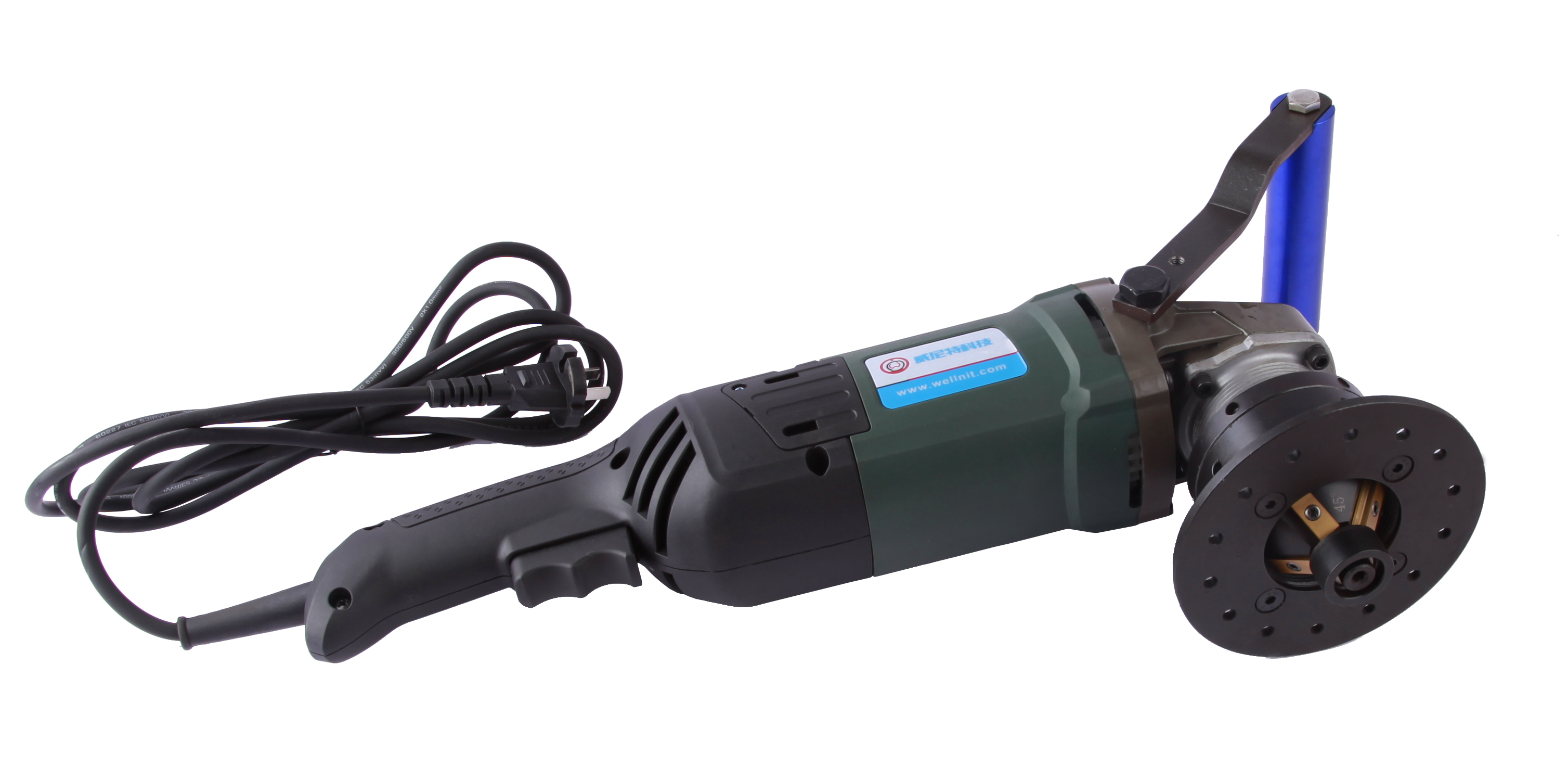

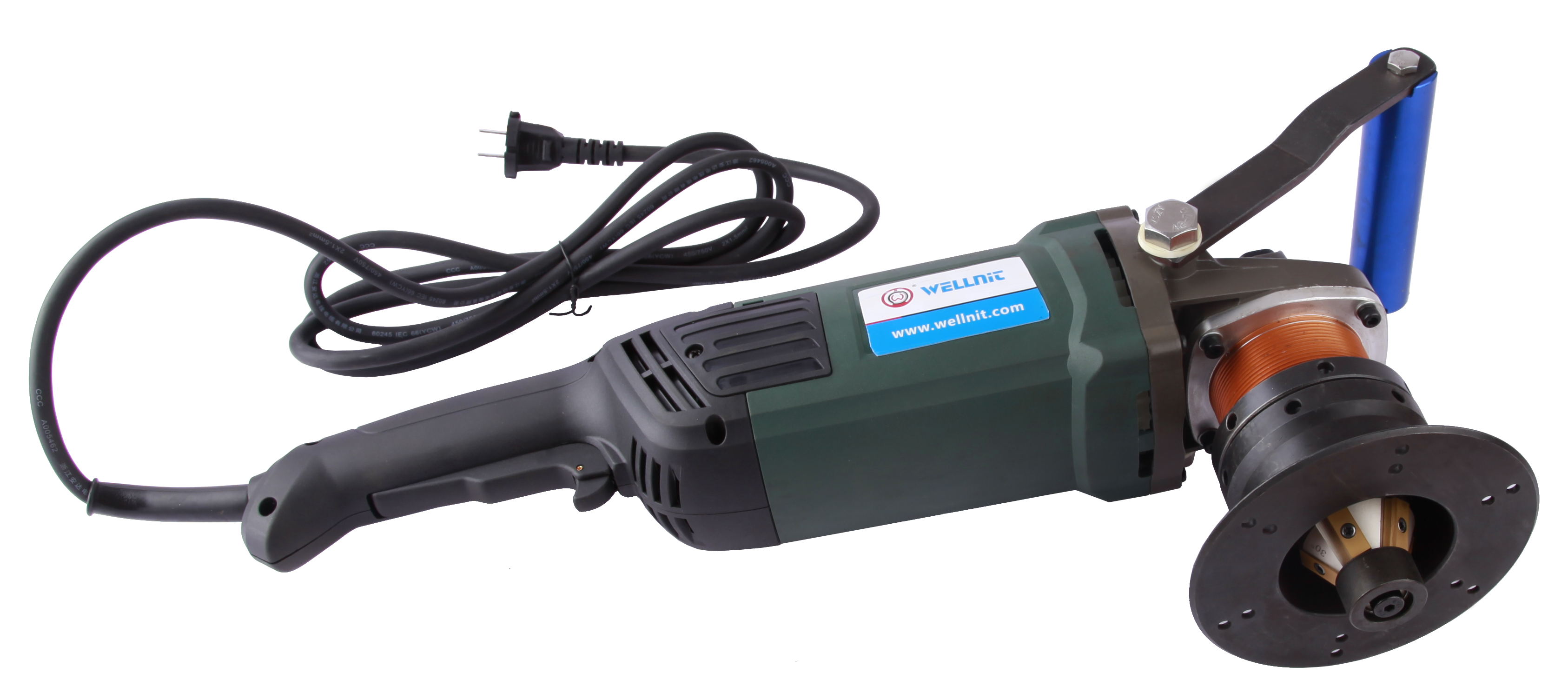

Multi-function groove machine PB-15/PB-10

Multi-function groove machine main products performance:

Multi-function groove machine is a manual operation of electric tools, this machine is suitable for processing before welding groove (can be processed into K, V, X, Y type groove), not only can be carried out on the plate groove processing and metal materials deflashing, but also to bevel the pipe inner hole machining.Its versatility and flexibility and can be a lot of improve the work efficiency and make it become the attractive device, the machine structure is compact, to where the environment is complex and difficult to machining operations.


Multi-functional characteristics of beveling machine:

1、Light is the most practical

2、High speed, high precision

3、Cold work completely, does not affect the pipe material


 Multi-function groove machine main products performance:

1、This series is installed outside diameter type groove machine has light weight and easy to carry.

2、Easy to install, quick, lhe swelling mechanism inserted into the pipe inner can automatically locate the center.

3、The machine in addition to materials such as carbon steel, stainless steel, alloy steel pipe of the U, V type weld groove, chamfering, cutting edge processing, and the convex flange processed after butt welding.


Multi-function groove machine technical parameters


ModelPB-15PB-110
Voltage220-240V220-240V
Working Frequency50/60HZ50/60HZ
Motor Power2450W1400W
Rotation500-1500mm/min500-1000mm/min
Beveling Angle30°(The standard)20°37.5°45°55°60°(optional)30°(Standard) 37.5°45°
Beveling Width1-15mm(Q235)1-10mm
Weight8.5Kg6.5Kg
Tool Bit Qty4/5片4/5pcs



Multi-function groove machine configuration

1、Calibration clamping system,

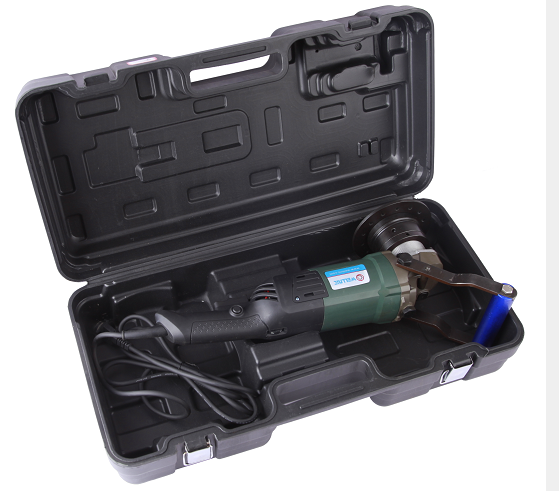

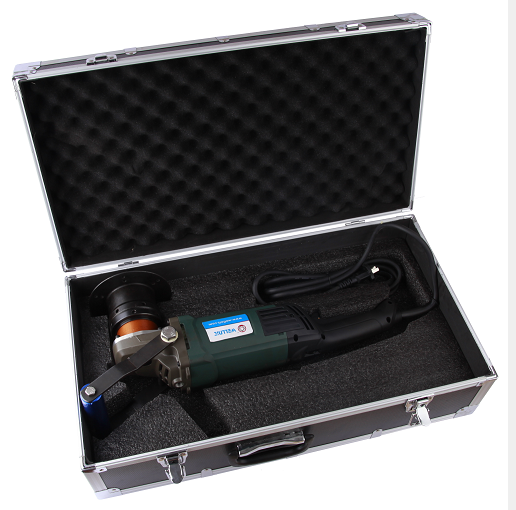

2、Customized storage box,

3、Operating tools,

4、Product specification,

5、Qualified inspection report。
