Aluminium Grating
FRP Grating

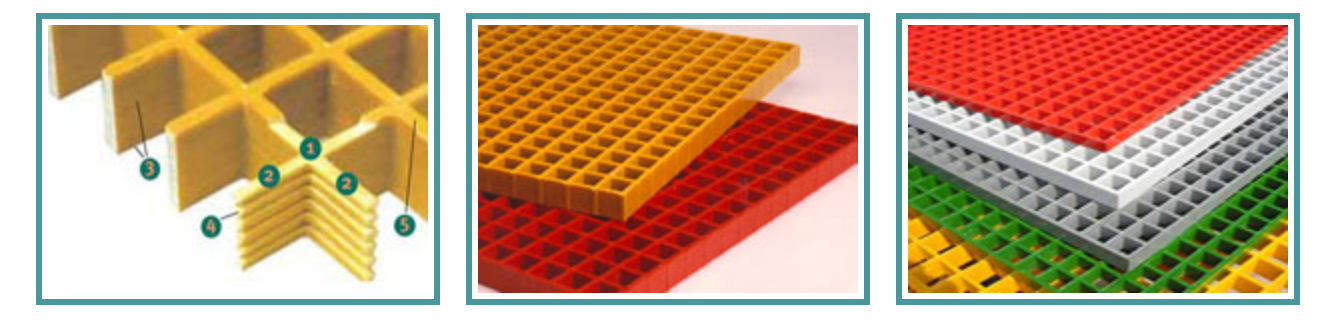

The Fibre Reinforced Plastic (FRP) grating is a moulded, one-piece fibreglass reinforced plastic grating, available in standard panels or fabricated into panels of the shape you require to fit your floor.The square pattern design with interwoven construction allows load to be transferred to the adjoining bars providing a superior load-carrying capacity.
The high resin-to-glass ratio provides maximum corrosion resistance to a wide range of chemicals frequently encountered in many industries.
The FRP comes in one standard panel size 1220 x 3660 mm.
eatures/Benefits
1. Integral, one-piece construction increases load-bearing capabilities.
2. Load applied to a Webforge FRP bar is transferred to adjoining bearing bars, assisting in load distribution on the grating as well as on
3. Smooth resin-rich vertical surfaces and tapered bars allow all debris to fall through.
4. Continuous glass fibre strand in alternating layers throughly wetted with the appropriate resin for excellent corrosion resistance.
5. Open area 70%.

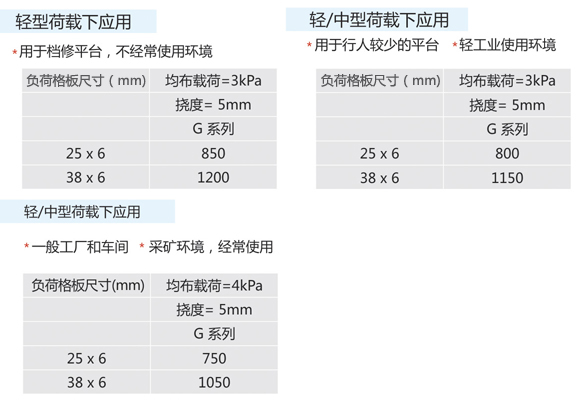

FRP grating is ideally suited to many applications.
See below for more details and specifications.
See below for more details and specifications.

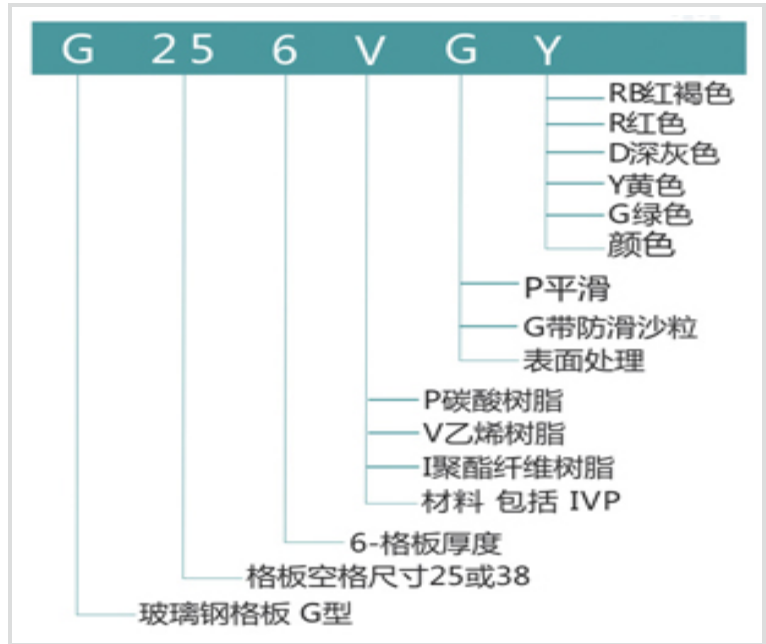

1. G pattern.

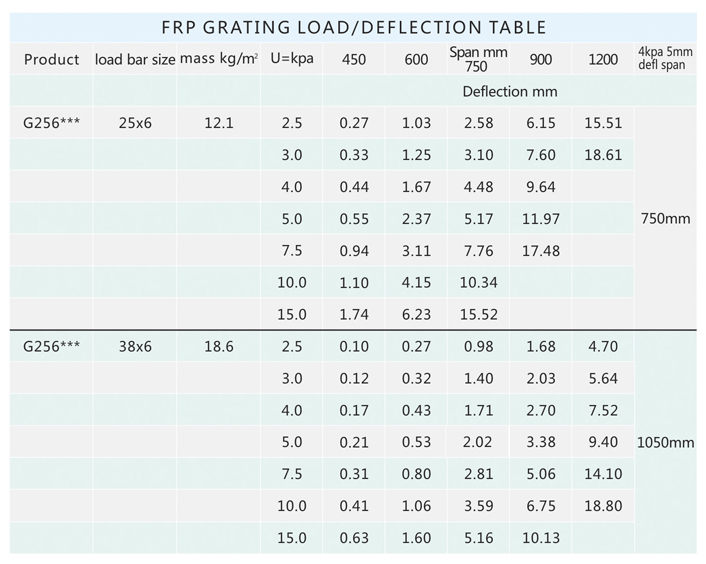

2. Choose a load bar from the Load/Deflection Table.
3. Add the options for Material, Top Surface and Colour.

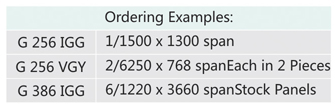

4. Panel size suffix should be stated only if you want a stock panel.
5. Other options are available. Contact your nearest branch.
Panels will have fingers unless the required sizes fall on a bar width.
2. Choose a load bar from the Load/Deflection Table.
3. Add the options for Material, Top Surface and Colour.
4. Panel size suffix should be stated only if you want a stock panel.
5. Other options are available. Contact your nearest branch.
Panels will have fingers unless the required sizes fall on a bar width.
Material
Isopthalic Polyester Resin
ASTM E-84 Fire rating Class 1, 25 or less
Vinyl Ester Resin
ASTM E-84 Fire rating Class 1, 25 or less
Phenolic Resin
ASTM E-84 Fire spread index 4. Smoke developed value 1.
Meets: Class 1 Flammability per ASTM E-84.
Class A interior wall & ceiling finish per NFPA No. 255.Available only in 38mm deep.
Top Surface
The slip resistance of the flooring and walkway product needs to be considered. Standard grating comparies plain square edge flat bars.
To increase slip resistance the following points should be considered on sloping walkways.Normally provided with an anti-skid surface.
This is a coarse grit embedded into the resin. Plain top surface is available.
Treatment/Colour
Available in a variety of colours.
We recommend:Isopthalic Polyester Resin – Green Vinyl Ester Resin – Yellow Phenolic Resin - Reddish Brow
G Green Y Yellow D Dark Grey R Red RB Reddish-Brown
Panel Size
Available in a variety of sizes suitable for cutting to suit the application.
Isopthalic Polyester Resin
ASTM E-84 Fire rating Class 1, 25 or less
Vinyl Ester Resin
ASTM E-84 Fire rating Class 1, 25 or less
Phenolic Resin
ASTM E-84 Fire spread index 4. Smoke developed value 1.
Meets: Class 1 Flammability per ASTM E-84.
Class A interior wall & ceiling finish per NFPA No. 255.Available only in 38mm deep.
Top Surface
The slip resistance of the flooring and walkway product needs to be considered. Standard grating comparies plain square edge flat bars.
To increase slip resistance the following points should be considered on sloping walkways.Normally provided with an anti-skid surface.
This is a coarse grit embedded into the resin. Plain top surface is available.
| G | Grit |
| P | Plain |
Treatment/Colour
Available in a variety of colours.
We recommend:Isopthalic Polyester Resin – Green Vinyl Ester Resin – Yellow Phenolic Resin - Reddish Brow
G Green Y Yellow D Dark Grey R Red RB Reddish-Brown
Panel Size
Available in a variety of sizes suitable for cutting to suit the application.
