ALUMINUM CABLE LADDER

System Overview

    AH aluminum cable ladder, for heavy duty job, comes in standard height of 4"[100mm]/5"[127mm]/6"[153mm]/7"[178mm]
    The AH Cable Ladder System is designed for lightweight handling, installation, and long corrosion resistance in mind. As well as having lightweight material properties, aluminium is very resistant to a lot of corrosive elements.

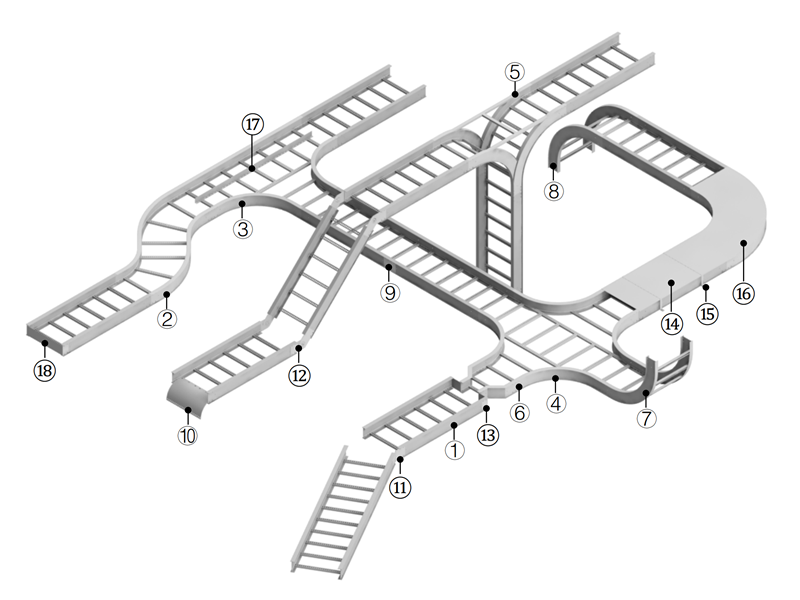

Aluminum Cable Ladder
1. straight section:   standard width comes in 100, 150, 300, 450, 600, 750, 900, 1000 and 1200mm ,length comes in 3000 and 6000mm, height comes in 100,125 and 150mm.
2. horizontal elbow:   standard angle comes in 30, 45, 60 and 90 degress, standard radius comes 300,600 and 900mm.>
3. horizontal tee:   standard radius comes 300,600 and 900mm.
4. horizontal cross:  standard radius comes 300,600 and 900mm.
5. vertical tee:   standard radius comes 300,600 and 900mm.
6. reducer:   left reducer as shown, right and straight reducer supplied on request.
7. internal riser:   standard radius comes 300,600 and 900mm.
8. external riser:   standard radius comes 300,600 and 900mm.
9. combination riser part
10. splice connector
11. horizontal splice connector
12. vertical splice connector
13. reduction splice connector
14. straight flat cover
15. heavy duty cover clamp
16. universal cover clamp
17.flat cover for horizontal elbow
18. barrier strip
19. blind end
20. drop out plate

Basic Parameters

MaterialAluminum
FinishAnodization
CertificationUL/CE/GOST-R/ABS/CSA/SGS/BV/DNV
Width6"[152mm]/9"[228mm]/12"[305mm]/18"[457mm]/24"[609mm]/30"[762mm]/36"[914mm]/40"[1016mm]/48"[1219mm]
Height4"[100mm]/5"[127mm]/6"[153mm]/7"[178mm]
Length120"[3048mm]/240"[6096mm]

Design Details

Different Height

Different Height

Different ladder heights to give more choice for loading space availability. AH cable ladder comes in standard heights of 4"[100mm]/5"[127mm]/6"[153mm]/7"[178mm]. Other heights are available on request.

Different Width

Different Width

Different tray widths to give more choice for loading space availability. AH cable ladder comes in standard widths of 6"[152mm]/9"[228mm]/12"[305mm]/18"[457mm]/24"[609mm]/30"[762mm]/36"[914mm]/40"[1016mm]/48"[1219mm]. Other widths are available on request.

I-Beam Side Rail

I-Beam Side Rail

I-shaped ladder side rail design greatly increases the support strength.
