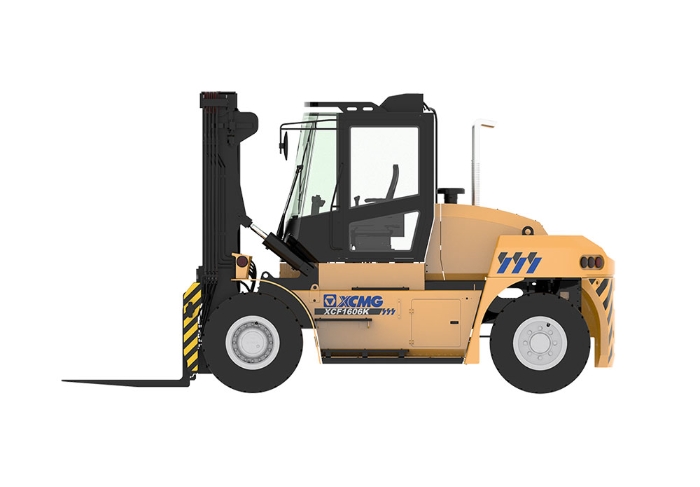

XCF1606K

PRODUCT FEATURE

Counter-balanced Forklift  is Mainstream configuration.safe and reliable. comfortable operation. energy saving and high efficiency. convenient maintenance.Counter-balanced forklift truck is not only suitable for loading and unloading of goods and short distance transportation, but also can undertake the auxiliary maintenance, disassembly and installation of important equipment.  It can also be used to handle steel coils, bulk materials, concrete, logs, 20 'containers and other materials with special tools.It applys to logistics areas such as freight yards, warehouses, ports, docks, railway and highway transfer stations

PARAMETERS
Item
Overall weight
Rated capacity
Maximum lifting height
Maximum travelling speed (unloaded\loaded)
Maximum lifting speed (unloaded\loaded)
Maximum gradeability(loaded)
Dimensions without fork
Wheel base
Load center
Minimum turning radius
Type of mast Secondary standard type
Fork dimensions
Fork adjustment range
Optional
Unit
kg
kg
mm
km/h
km/h
-
-
mm
mm
-
-
mm
mm
-
Parameter
19500
16000
3000
29/27
400/350
0.23
4895×2560×3380
3250
600
4450
/
1370×200×85
500~2370
/
