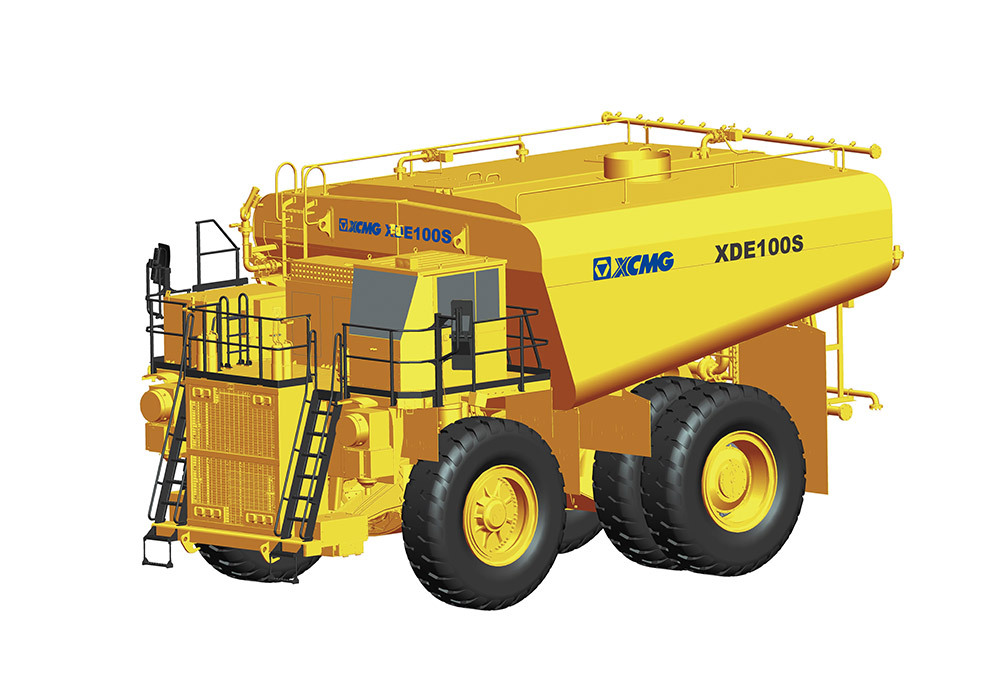

XDE100S

PRODUCT FEATURE

1. It carries an imported genuine electronic control diesel engine, single-stage turbo charging, which is fuel economic and powerful; engine monitoring system can continuously detect cylinders working conditions, which can help prolong engine service life and reduce cost of use.

2. AC drive system is adopted for the truck, makings it safe and reliable, lowering failure rate and reducing maintenance cost; and this system can realize constant power control and stepless speed regulation, offers strong traction and ensures maximized productivity.

3. The truck has a box-section design and is made of high-quality alloy steel plates, which gives it anti-fatigue strength, low-temperature impact resistance and good welding performances. Crucial stress-bearing positions are made of steel casts, which extend the service life.

4. The water tank of XDES sprinkling truck is made of high-quality high-strength low-alloy steel plates that give it a good impact resistance performance. At the interior of water tank is wave-proof baffling plates that improve truck stability; and on partition plates there are various deflector holes that ensure normal water flow and manholes that ensure maintenance convenience.

5. ROPS & FOPS that meet ISO standards are installed for driver’s cab, and its ergonomic design enlarges interior space, broadens field of view range, secures driver’s working safety and increases comfort level of driving experience.

PARAMETERS
Item
Vehicle total mass
Tank volume
Curb weight
Engine rated power
Engine max. torque
Max. speed
Max. grade ability
Min. turning diameter
Sprinkling mileage
sprinkling width
max. range of water monitor
Unit
kg
kg
kW
Nm
km/h
%
m
km
m
m
Parameter
95000
100
195000
970
5286
50
20
22
10~15
15~30
60
