XGC75

PRODUCT FEATURE

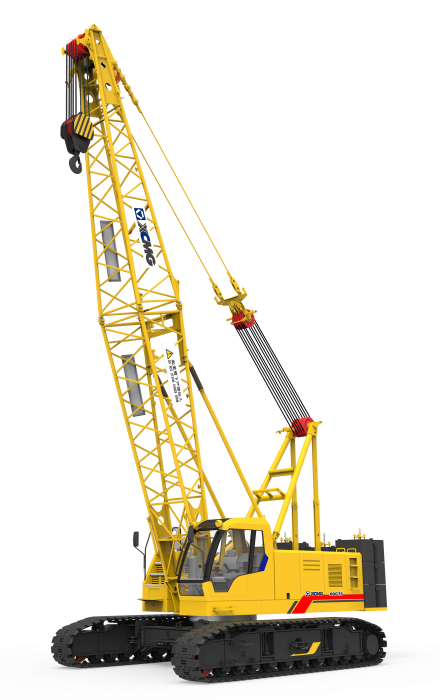

XGC75 is a new generation crawler crane which is successfully developed on the basis of XCMG second generation product . Inheriting the advantages from the old generation product XGC55, XGC75 and XGC85, XGC55 crawler crane pays more attention to the improvement of crane performance, economy, transport convenience and  operation comfort. The system is mature and reliable with complete safety devices. Fitted with multiple advanced technologies, such as gantry self-pulling function, main hook quick release function,  main and auxiliary hook block one-key switch function, slewing fine motion control and etc., the crane’s  performance is superior to that with other domestic brands in various aspects.

XGC75 crawler crane has a wide range of application, it applies to transportation infrastructure construction, city building construction, large load lifting and transfer, energy equipment installation and etc..


PARAMETERS
1.Max. lifting capacity
75
2.Boom length
m13-58
3.Hoist speed
m/min128
4.Luffing speedm/min70
5.Max. lifting load momentt.m286
6.Engine rated power
kw 199
7.Max. travel speedkm/h1.2
