MULTIPLE SUPPORT CHANNEL

System Overview

    The MSC multiple support provides support profiles of various cross-sections, 50x50, 100x100 triangular supports and 50mm, 100mm U-shaped supports, etc.

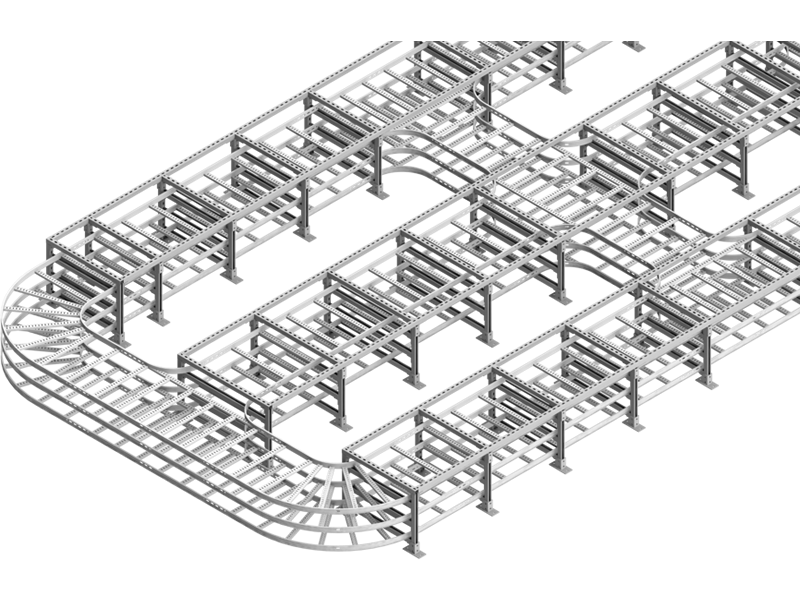

    The MSC support is a flexible, light-weight and cost-saving support system suitable for all major disciplines, including electrical, instrumentation, telecommunications, HVAC and plumbing. MSC series profiles have a variety of profiles, grades and materials to choose from to suit any application, but they all have the same high-quality engineering solutions. Compared with traditional welding supports, the MSC series support systems are significantly lighter, faster to install, safer and more cost-effective in construction.
Multiple Support Channel


Basic Parameters

MaterialMild steel/SS316L/Pre-gal steel
FinishHDG/Pickling passivation/Electroplate/Powder coating
CertificationUL/CE/GOST-R/ABS/CSA/SGS/BV/DNV
WidthFAC50,FAC100,UC100,UC50,AB60,UAC-40x60
Height/
Length3000mm/6000mm

Design Details

Standard Support

Standard Support

MSC supports provide 100x100, 50x50 triangular supports, 100x25 U-shaped supports, various L-shaped equilateral or unequal sides supports.

Welding Starter Grid System

Welding Starter Grid System

The MSC supports welding starter grid system through the layout during the initial construction and all subsequent renovation or upgrade work, which can maximize the flexibility in design and installation.

Back to Back Connecting

Back to Back Connecting

All support are connected back-to-back with self-locking bolts, no additional connection accessories are needed, and installation i
